Retract-O-Tape^® and SaddleLoop^® are sealed silicone tubes that provide an air cushion for occluding or retracting vessels during surgery, with minimum trauma. All varieties maintain the round profile while providing necessary flexibility and are latex free.

Available sterile and non-sterile from Quest Medical, Inc. and from all procedure kit suppliers.

Materials:

Needle: Surgical stainless steel
Tubing: Radiopaque silicone
Not made with latex

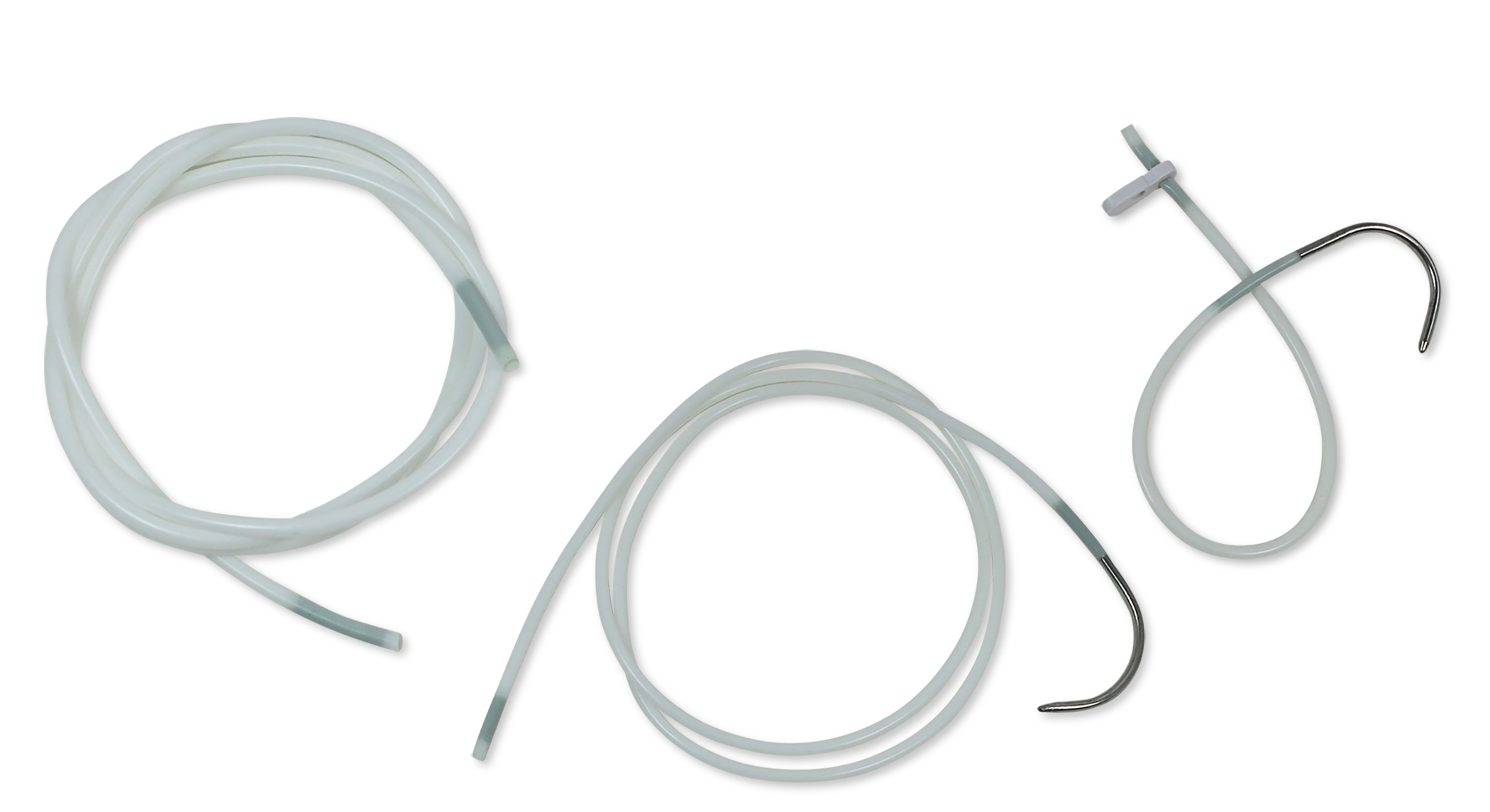

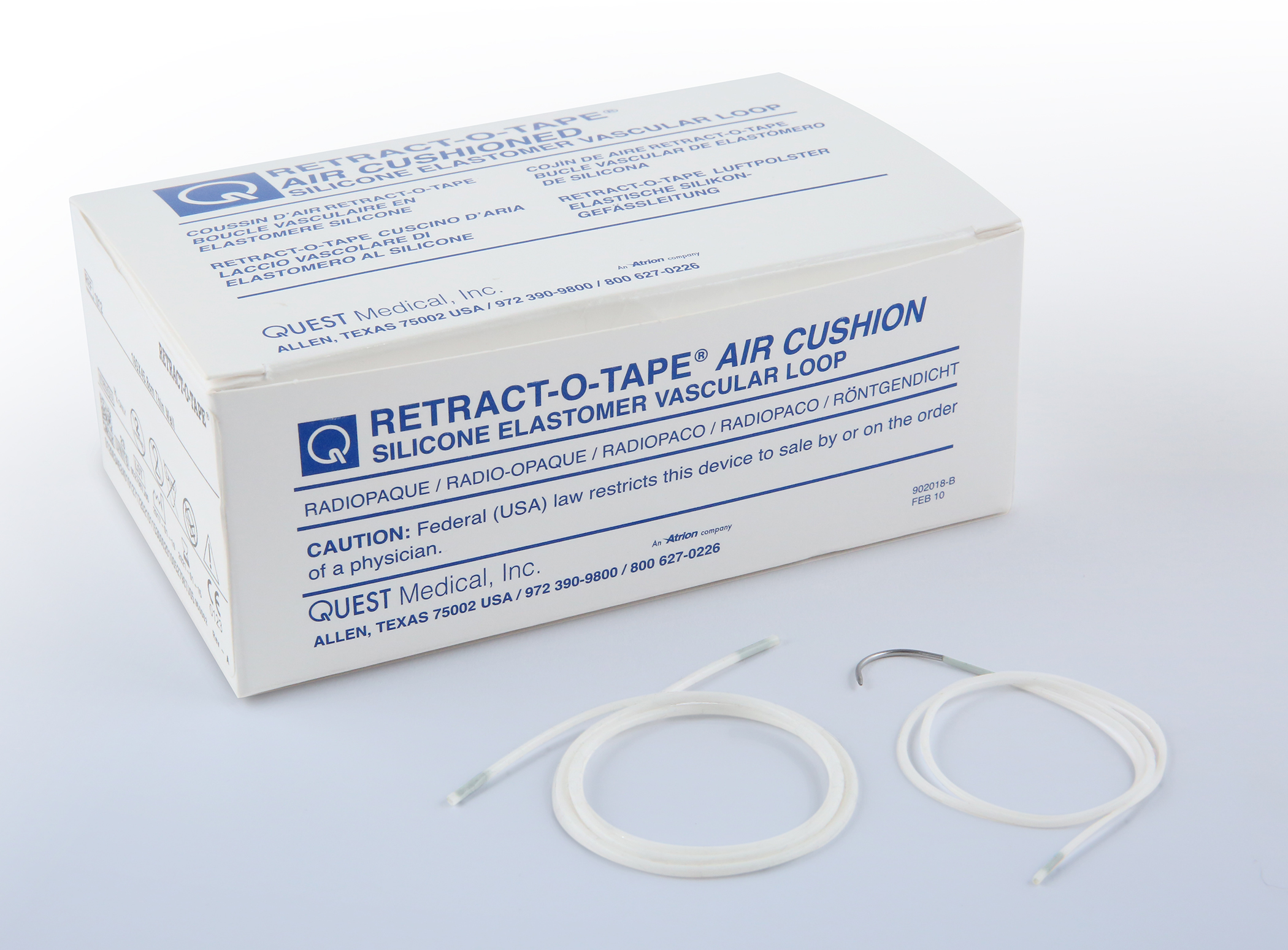

Retract-O-Tape

This air-cushioned vascular loop is available with or without a pre-attached needle. The pre-attached 18G surgical steel needle is specifically designed to assist with accurate placement. Needle tip is available in blunt and semi-pointed.

Features and Benefits:

Radiopaque
Atraumatic, soft, air-cushioned material
Precision-designed needle curvature
Less expensive than shunts and able to retract

REF 1041

Blunt-tip 18G curved needle vascular loop, pre-attached
Length: 12 in (30.48 cm)
Diameter: 0.049 in (1.24 mm)

REF 1071

Semi-pointed 18G pre-attached curved needle vascular loop
Length: 12 in (30.48 cm)
Diameter: 0.049 in (1.24 mm)

REF 1012

Length: 18 in (45.72 cm)
Diameter: 0.066 in (1.67 mm)

REF 1015

Length: 18 in (45.72 cm)
Diameter: 0.131 in (3.32 mm)

REF 1032

Length: 18 in (45.72 cm)
Diameter: 0.066 in (1.67 mm)

REF 1001

Length: 12 in (30.48 cm)
Diameter: 0.049 in (1.24 mm)

REF 1002

Length: 12 in (30.48 cm)
Diameter: 0.066 in (1.67 mm)

SaddleLoop

Uniquely designed for robotic surgery, SaddleLoop is shorter than the Retract-O-Tape products. SaddleLoop is perfect for minimally invasive procedures where manipulation is restricted and can be used within the confines of a heart stabilizer.

REF 1541 Blunt-tip needle
REF 1571 Semi-pointed needle
